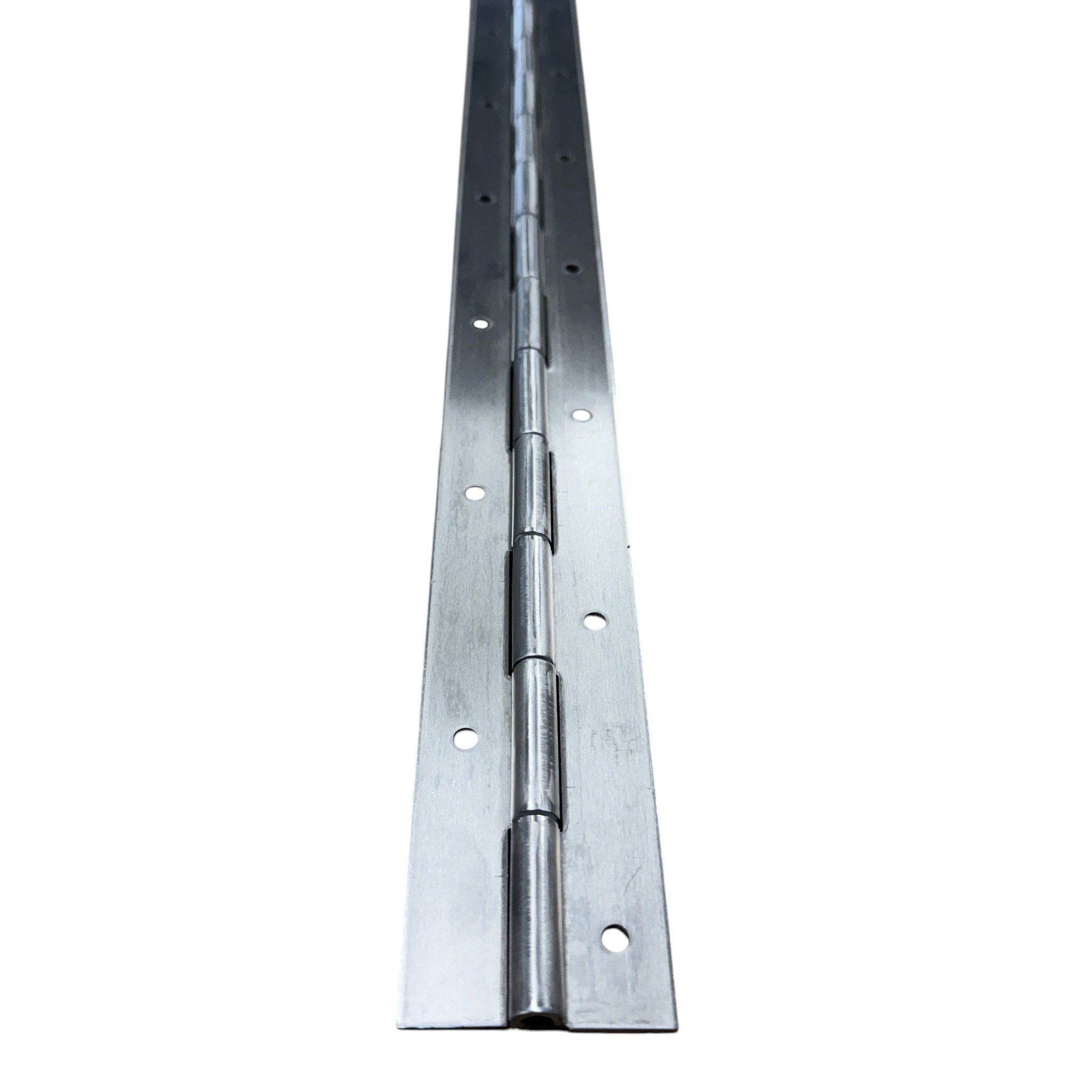

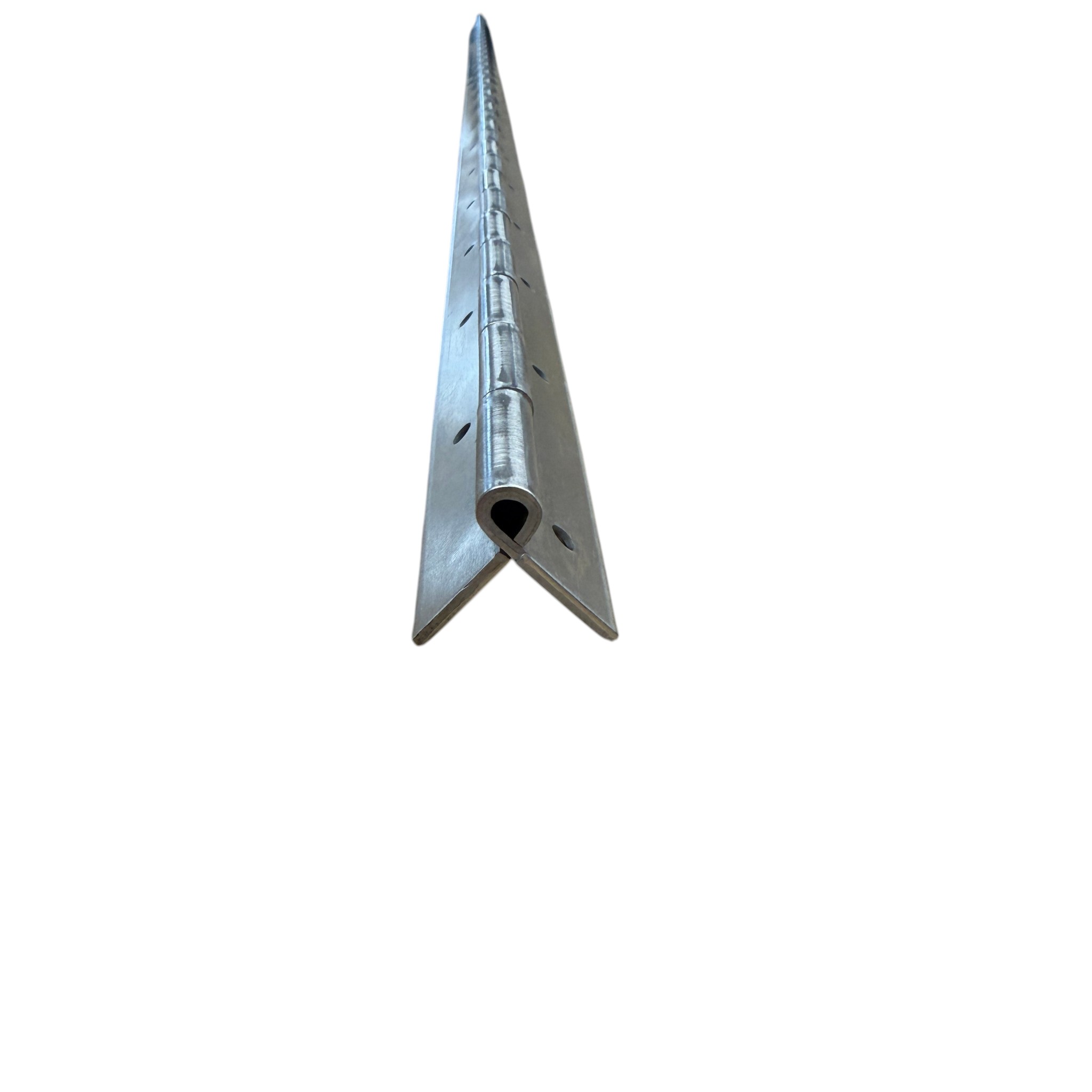

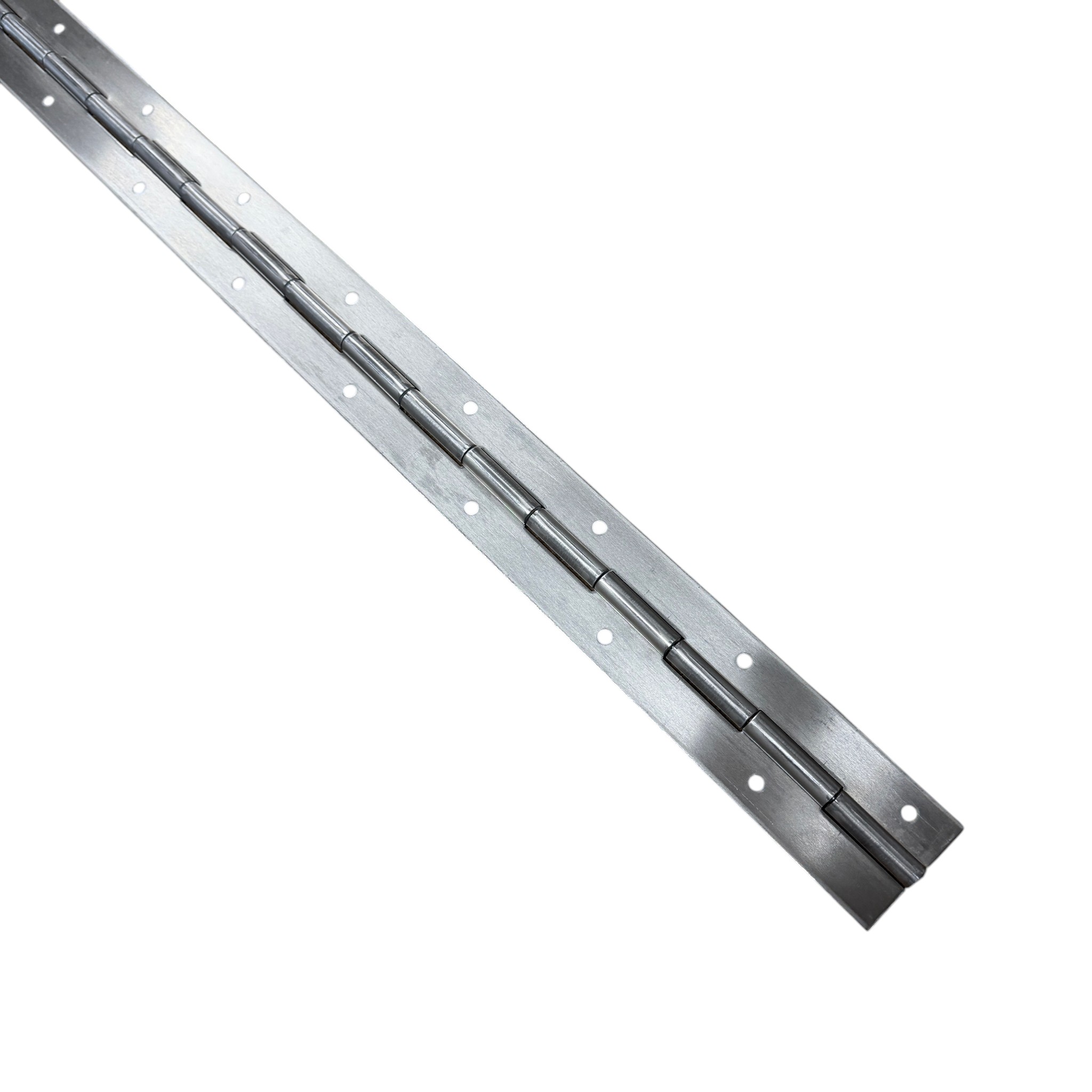

Heavy Duty Aluminum Door Piano Hinge
Price range: $49.95 through $184.95
- Extra-thick .090″ aluminum leaf — handles heavy plywood and exterior skin without sagging

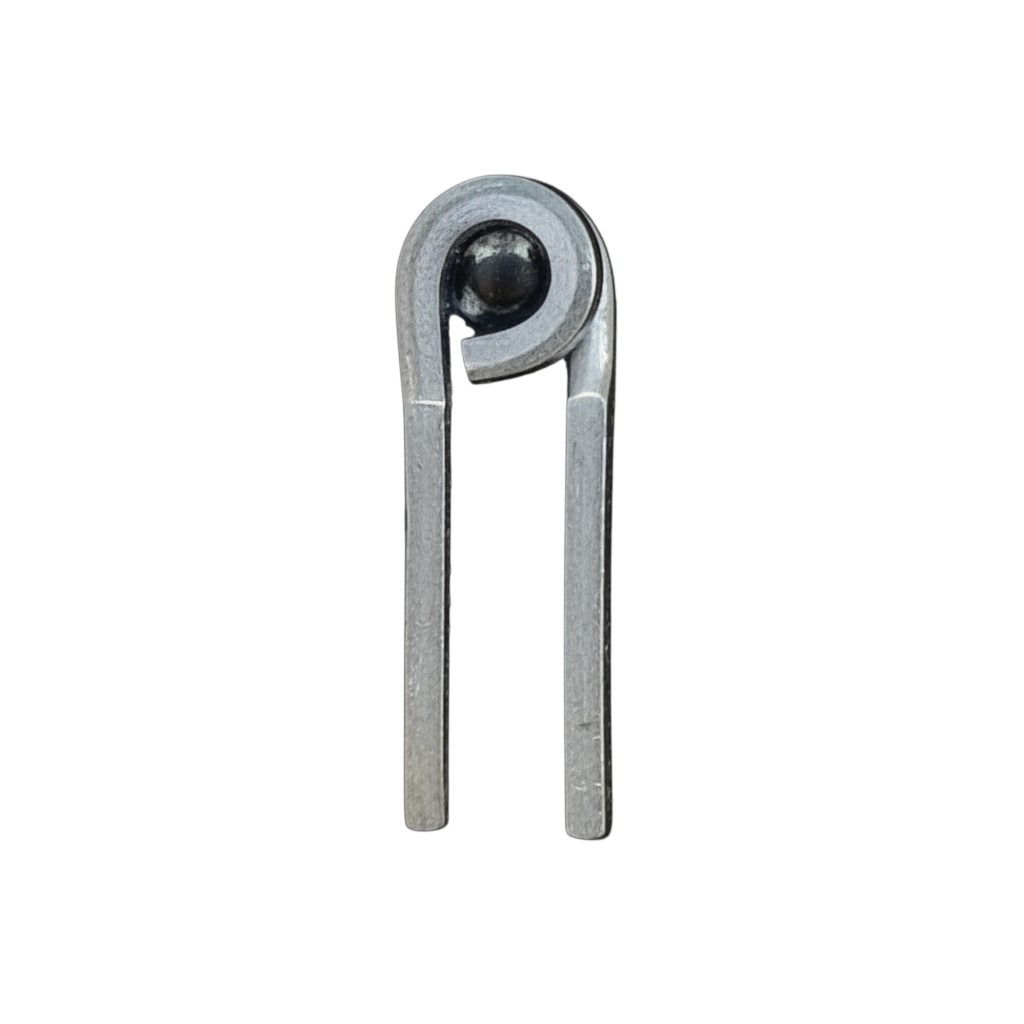

- Solid 3/16″ aluminum pin — distributes stress evenly over the full door length
- Pre-punched holes— ready for screws or rivets right out of the box
- All-aluminum construction — both leaves and pin are aluminum; won’t rust, seize, or corrode outdoors
- Cuttable to length — trim easily with a hacksaw or chop saw for smaller projects
Description
The hinge that won’t sag or rust
When you’re building a teardrop trailer galley or a heavy utility door, the hinge is the most critical moving part. Standard hardware store hinges bend, warp, and rust under the weight of heavy plywood and exterior skin — especially after months of road vibration. This heavy-duty aluminum piano hinge is engineered from the ground up to handle the load.
Built for road vibration
With a .090″ thick leaf and a solid 3/16″ pin, this continuous hinge distributes stress evenly across the entire frame — preventing door sag and ensuring smooth operation every time you open it. It’s the same design principle used in industrial panel doors, scaled for DIY trailer builds and custom fabrication.
Ready to install
Forget the drill press and measuring tape. Mounting holes are pre-punched, so you can go straight to installation with screws or rivets. The mill-finish aluminum looks clean and professional — leave it raw or paint it to match your rig.
All-aluminum, inside and out
Both leaves and the pin are aluminum. Unlike budget hinges that use a steel pin inside aluminum leaves, there’s no dissimilar metal to corrode, seize, or stain. Essential for campers, marine applications, and enclosed trailers that live outside year-round.
Choose your configuration
Available in multiple configurations to match your project:
- Lengths: 36 inches (3 ft) or 72 inches (6 ft)
- Quantities: 1-pack, 2-pack, or 4-pack — including a 2-pack option for both 36″ and 72″
- Hardware: Add 1″ mounting screws
- Cuttable: Trim to any custom length with a hacksaw or chop saw
Specifications
| Material | Heavy-duty aluminum (leaves and pin) |
| Available lengths | 36″ (3 ft) or 72″ (6 ft) |
| Open width | 2 inches |
| Leaf thickness | .090″ |
| Pin diameter | 3/16″ |
| Screw Holes | Pre-Punched |
| Finish | Mill finish (silver) |
| Optional hardware | 1″ mounting screws (select at checkout) |
| Common uses | Teardrop camper galleys, enclosed trailers, smokers, toolboxes, cargo ramps, custom fab |
Additional information
| Length | 36 inch, 72 inch |
|---|---|
| Pack Size | 1 Hinge, 2 Hinges, 4 Hinges |
| Screws | Add Screws, No Screws Included |
